Retention tanks

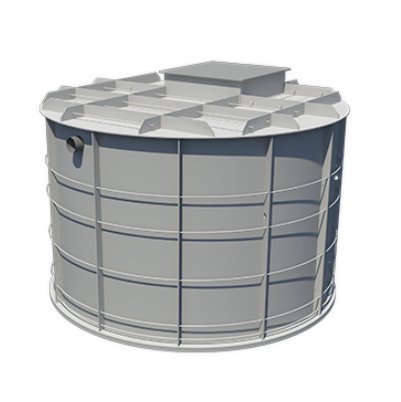

RETENTION TANK
STANDARD - BTSCylindrical tank including plastic lid / Designed for concreting / Material thickness 8mm including ribs / For use in pools with overflow edge.
DIMENSIONS:
- BTS-3 / ø 2136 x 1536 / Volume 3m³
- BTS-4 / ø 2416 x 1536 / Volume 4m³
- BTS-5 / ø 2636 x 1536 / Volume 5m³
-
Combined shafts

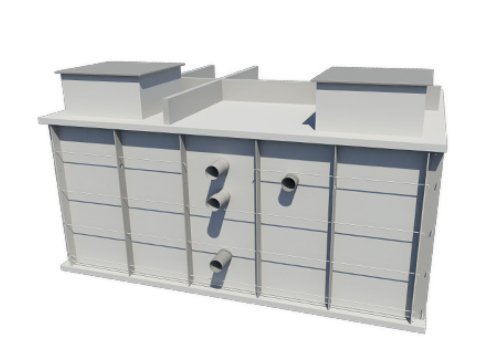

COMBINED SHAFT
STANDARDThis shaft combines a technology section and a retention tank with a volume of 2.21m³ / Walls 8mm, bottom and ceiling 50mm, chimney and lid 15mm thick with UV stabilization / Ventilation system 2 x HT Ø110, scales, suction basket, overflow / Use for pools with overflow edge / Possibility of installing an active ventilation system.
DIMENSION / L-W-H / MM:
- TS-AK 23 - 3180X2300X1770MM
Application for
relaxed control
- Android or iOS
- roofing control
- roller blind control
- light operation
- filter backwash
- water temperature adjustment
- on-line water quality control and treatment
